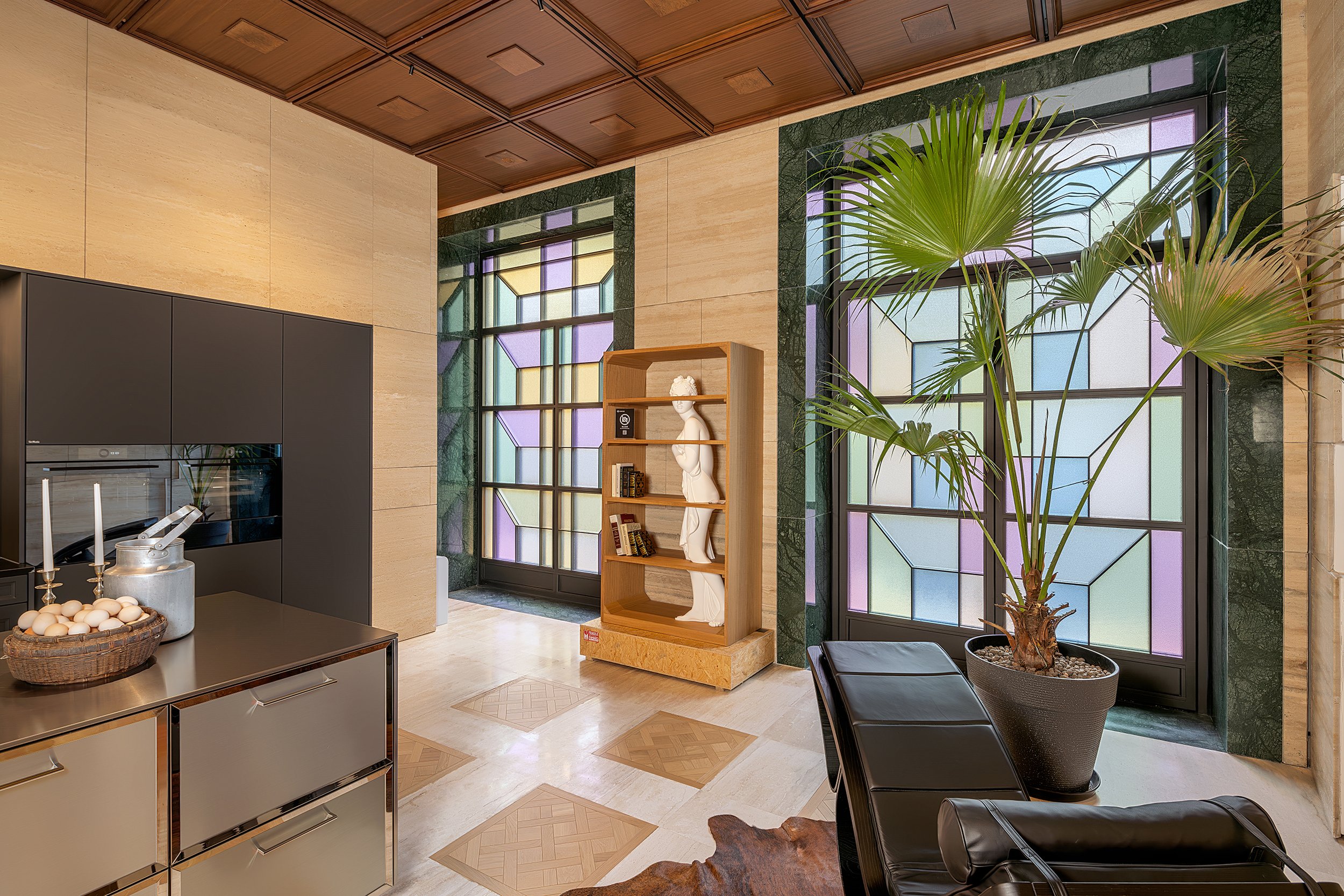

Luxury Residential Building - with Large floor-to-ceiling windows - Side

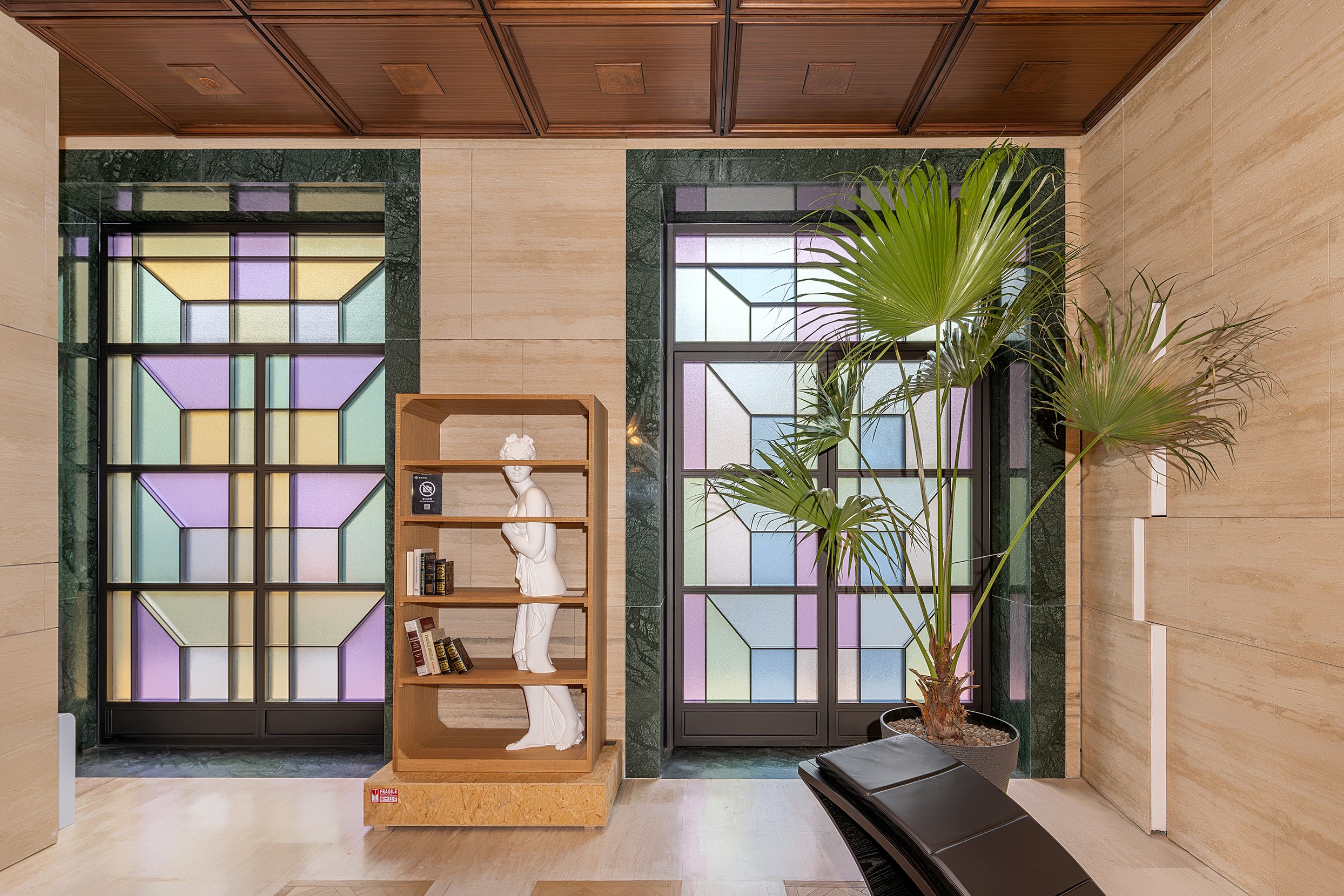

Luxury Residential Building - with Large floor-to-ceiling windows - Front

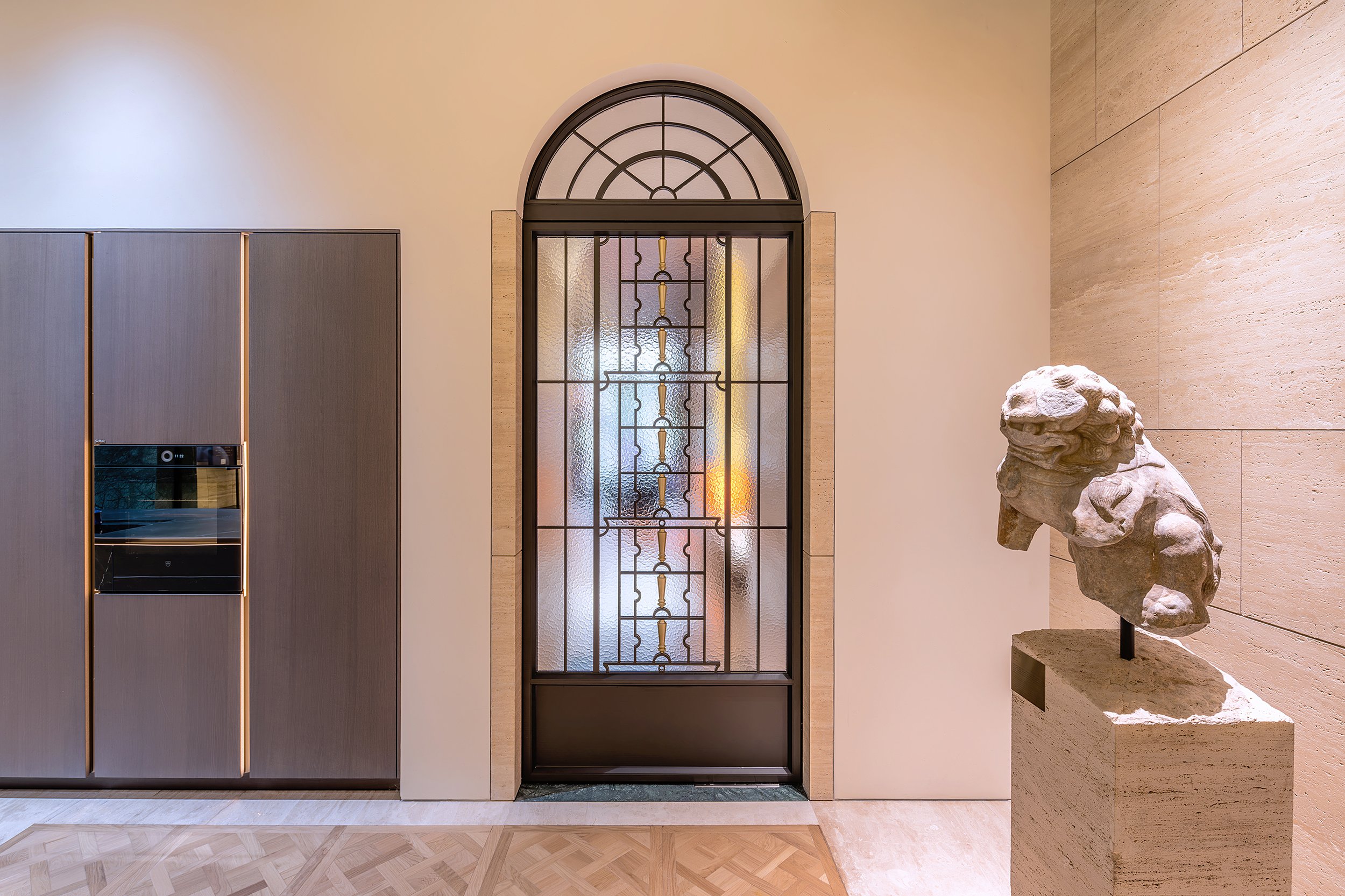

Luxury Residential Building - with Large floor-to-ceiling windows - Arch Door

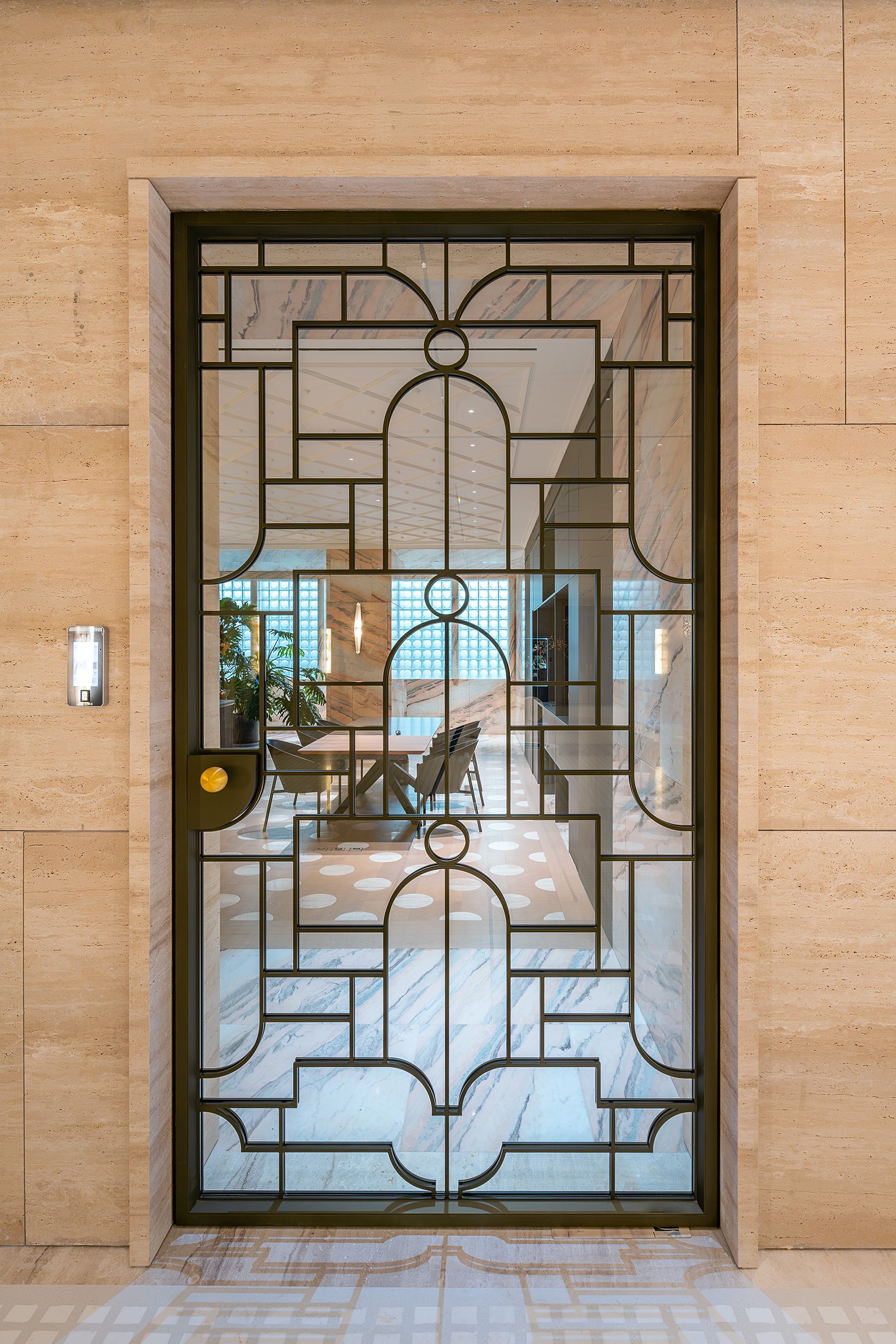

Luxury Residential Building - with Large floor-to-ceiling windows - Custom Pattern Door

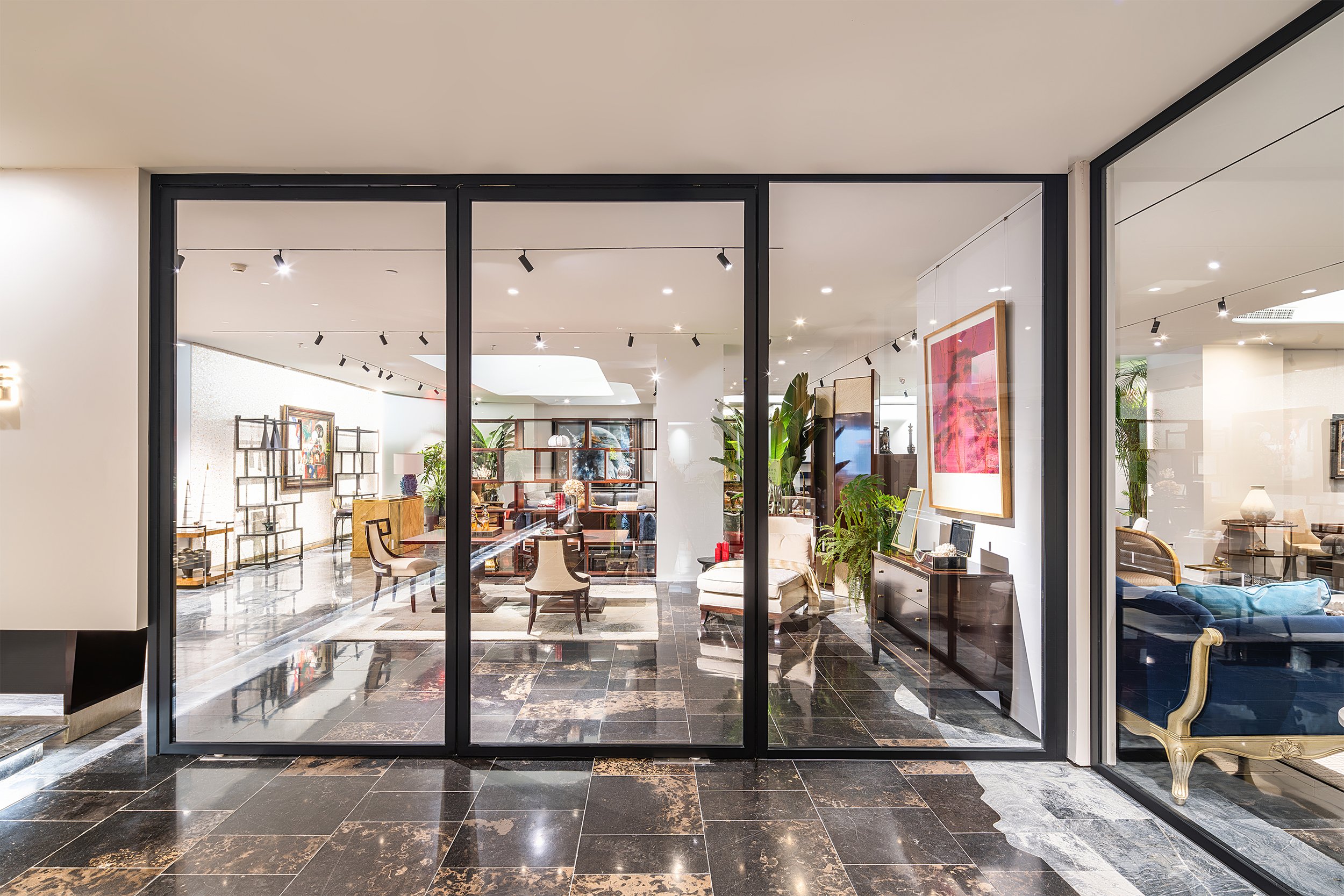

Luxury Residential Building - with Large floor-to-ceiling windows - Partition System
Luxury Residential Building - with Large floor-to-ceiling windows - Side
Luxury Residential Building - with Large floor-to-ceiling windows - Front
Luxury Residential Building - with Large floor-to-ceiling windows - Arch Door
Luxury Residential Building - with Large floor-to-ceiling windows - Custom Pattern Door
Luxury Residential Building - with Large floor-to-ceiling windows - Partition System

Slim-65 Ultra-Narrow Profile System

$0.00

The Slim 65 ultra-narrow windows and doors were created to transform ordinary in-door rooms into a view-changing ultra-contemporary space. This elegant product line features a unique clean line design that provides an elegant tone for high-end villas, clubs, and residential buildings.

Add To Cart

The Slim 65 ultra-narrow windows and doors were created to transform ordinary in-door rooms into a view-changing ultra-contemporary space. This elegant product line features a unique clean line design that provides an elegant tone for high-end villas, clubs, and residential buildings.

The Slim 65 ultra-narrow windows and doors were created to transform ordinary in-door rooms into a view-changing ultra-contemporary space. This elegant product line features a unique clean line design that provides an elegant tone for high-end villas, clubs, and residential buildings.

    • Galvanized Steel, Stainless Steel, Brass, Copper Plating Wire Drawing

    • PVDF Coating (coating temperature is 80-120℃)

    • Copper-Plated Brushed Finish

    • Profile Standard Length: 6000mm

    • Retro Inner Door, Minimalist Inward Opening Door, Inward Opening Window: Minimum Diameter for Outward-Opening/Inward-Opening Door is 1000mm

    • Retro Inward Window: Minimum Diameter for Inward-Opening Windows is 900mm

    • Fixed Window: Minimum Diameter is 600mm

    • Fixed window(can be made of Arc-shaped)

    • Inward-opening/ Outward-opening Window(can be made of Arc-shaped)

    • Tilt and Turn window

    • Top-hung window

    • Hopper window

    • Partition System

    • Vintage Single/Double Door

    • Ultra-Minimal Single/Double Door

    • Interior Single/Double Door

    • Fixed + Inward Opening and Tilting

    • Top-Hung Window

    • Fixed Sash + Top-Hung Window

    • Openable/Fixed Combinations

    • The three-cavity structure design can achieve a better heat insulation effect

    • K (f) of the SLIM65 profiles is 1.6W/(㎡·K)

    • Profile width is 65mm

    • The SLIM65 profile wall thickness is 1.5mm

    • The largest notch size C slot can be matched with European standard hardware.

    • SLIM65 profiles system structure is cold rolled formed steel profiles

    • Connection to solid wall or lightweight partition wall

    • PA66 Thermal break strips

    • CPUR (cast polyurethane rubber)

    • Nylon spacers

  • SLIM65 Steel Inward-Opening Window System
    standard size is 650mm (width)×1200mm(height)
    maximum limit size is 900mm(width)×1800mm(height)
    Max weight of one fan is 120kg

    SLIM65 Steel Outward-Opening Window System
    standard size is 650mm (width)×1200mm(height)
    maximum limit size is 750mm(width)×1600mm(height)
    Max weight of one fan is 80kg

    SLIM65 Tilt and Turn Window System
    standard size is 650mm (width)×1200mm(height)
    maximum limit size is 900mm (width)×2100mm(height)
    Max weight of one fan is 150kg


    SLIM65 Top-Hung Window System
    standard size is 1000mm (width)×1000mm(height)
    maximum limit size is 1200mm (width)×1200mm(height)
    Max weight of one fan is 120kg

    SLIM65 Hopper Window System
    standard size is 1000mm (width)×1000mm(height)
    maximum limit size is 1200mm (width)×1200mm(height)
    Max weight of one fan is 80kg

    • Welded Hinges (3 per door)/Screw-On type Standard Hinges (2 per door)/Folding Hinges

    • Multi-Point Lock System: Customized Lock Box, Multi-Point Lock Body, and Handle.

    • Single-Point Lock System: Lock Box, Single-Point Lock Body, and Handle.

    • Handle Style: Vintage Style/Modern Minimalist

    • Concealed Opening Limiter

    • Built-in Multi-Position Support Rods.

    • Glass decorative strips (flat decorative strips series, pointed decorative strips series)

    • Bottom door steel plate (coating color matching the profile color)
